LBT21084HC-5V-10A-8CH

Get a Quote

Product Highlights

Product Series LBT21 Series
Maximum Voltage 5V
Maximum Current 10A
Channel Numbers 8
Chassis Size 25W45D40H

Applications

  • dQ/dV & Coulombic Efficiency (HPC) Measurements
  • Life Cycle Testing
  • PITT/GITT
  • Symmetric-Cell Testing
  • Cyclic and Linear Sweep Voltammetry
  • Chronoamperometry
  • Chronocoulometry
  • Chronopotentiometry
  • Multi-Electrode Testing
  • EIS (Electrochemical Impedance Spectroscopy)
  • Half-Cell Testing and Materials Research

Options and Auxiliaries

  • EIS
  • Aux Voltage
  • Aux Temperature
  • MZTC Multi-Chamber
  • Chamber Interface
  • Analog I/O Digital I/O
  • Auto-Calibration
  • Uninterrupted Power Supply (UPS)
  • Redundant Safety Monitoring System (RSMS)
  • 3E Coin Cell Holder
  • Battery Holders and Racks

Specifications

General Description
System Name System-LBT21084HC-(-5)~5V-10/0.5/0.02/0.001A-8CH
Number of Channels 8
Circuit Type True Bipolar Linear; allows cross-zero linearity. Ensures there is no switching time between charge and discharge within a step; such as performing EV drive Simulations.
Country of Origin USA
Hardware Specification
Voltage Ranges -5V ~ 5V
Measurement Resolution 24bit
Measurement Precision ±0.01% FSR
Measurement Accuracy ±0.02% FSR
Control Resolution 16bit
Control Precision ±0.01% FSR
Control Accuracy ±0.02% FSR
Input Impedance 10G Ohm
Voltage Control Mode Analog
Hardware Voltage Clamp No
Current Ranges 10A/500mA/20mA/1mA
Measurement Resolution 24bit
Measurement Precision ±0.01% FSR
Measurement Accuracy ±0.02% FSR
Control Resolution 16bit
Control Precision ±0.01% FSR
Control Accuracy ±0.02% FSR
Minimum V at Max Current -5V
Current Rise Time 400us*
Time required for current output to get from 10% to 90% of FSR.
Max. Continuous Power Output 50W
Time Minimum Step Time 5ms
Data Logging Rate 2000 points per second per system
Measurement Resolution 100 μs

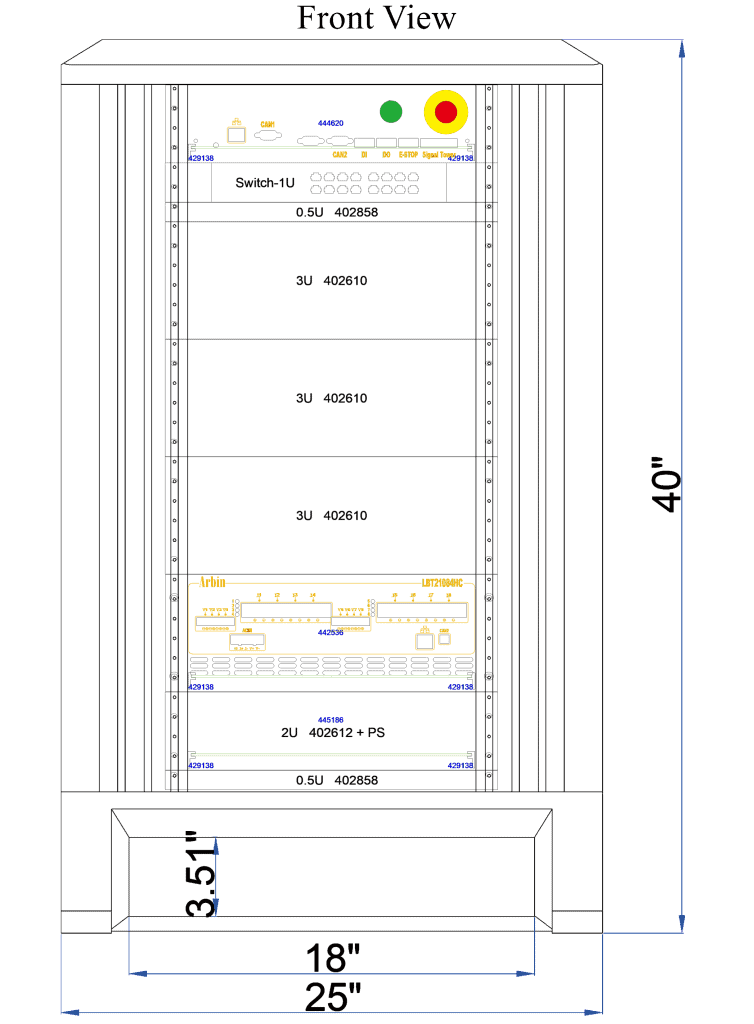

Main Chassis
Chassis Size (W x D x H) 25'' x 45'' x 40''
Cooling method Air-cooled with built-in variable speed fans; no infrastructure is required. Three feet clearance around chassis.
Working Temperature Range 0 ~ 30 °C
Connection to PC TCP/IP (Ethernet)
AC Power Input Single Phase Requirement Three Phase Requirement
Voltage 110 / 220 V NA / NA V
Max Power 1950 / 1950 W NA / NA W
Max Current/Phase 18 / 9 A NA / NA A
Circuit Breaker 20 / 15 A NA / NA A
Frequency 50/60 Hz
Built-in Hardware
Auto-Calibration Interface* no
EIS/ACIM Interface** Yes
Digital I/O No
CAN BUS Optional
SMB BUS No
Aux Voltage N/A
Measurement Accuracy N/A
Input Impedance N/A
Aux Temperature N/A
Temperature Range N/A
Measurement Accuracy N/A
Data Log
Minimum log interval per channel 1ms
Data Recording Criteria ΔTime, ΔV, ΔI, ΔPulseCycle
N/A
*Autocalibration box is sold separately.
**EIS testing device is sold separately.
