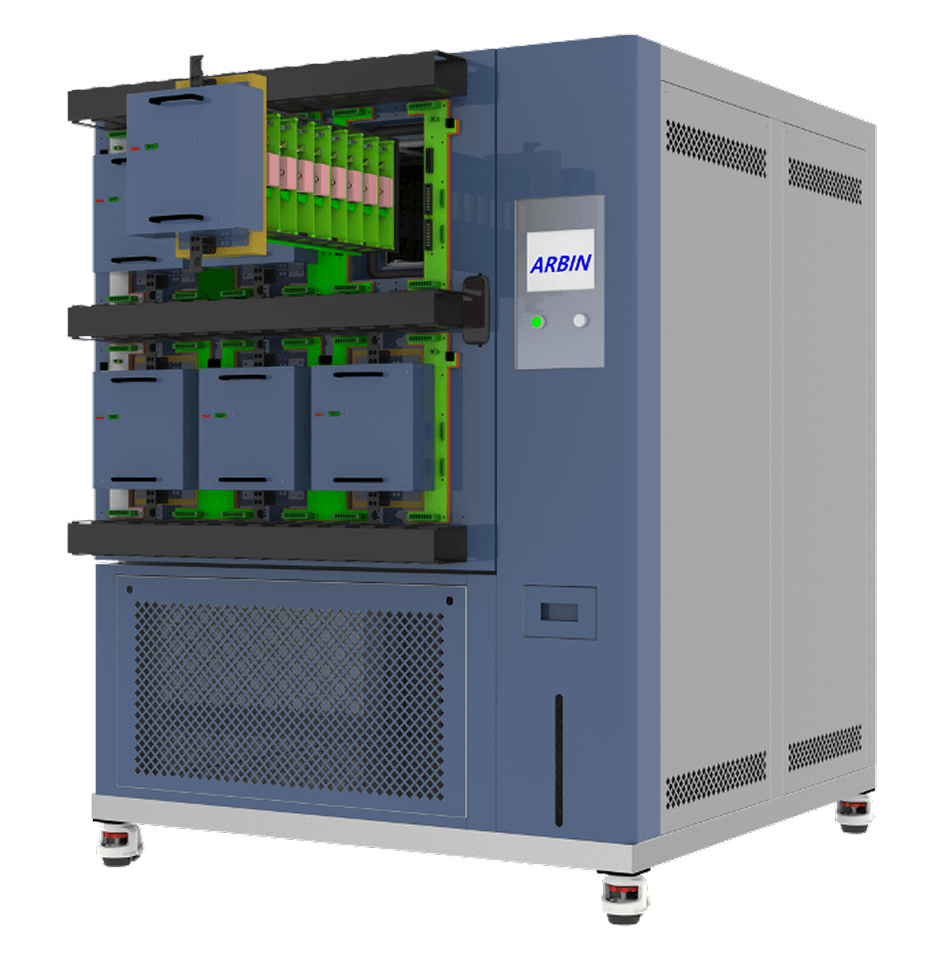

Arbin Smart Battery Tray
with Thermal Chamber
Arbin's SBTR-OTO battery tray features advanced thermal management with integrated thermoelectric cooling (TEC) modules to provide precise, independent temperature control for each cell.
Designed for high-performance testing environments, each cell is seated within a machined aluminum housing that ensures direct thermal contact with the TEC module. The opposite side of the TEC is exposed to ambient conditions-typically an environmental chamber-allowing for passive or chamber-assisted heat rejection.

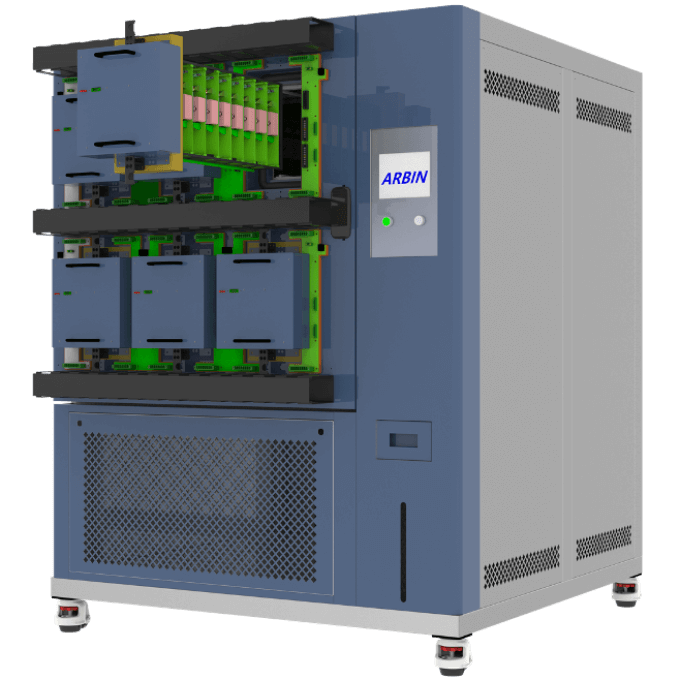

Smart Battery Trays in Environment Chamber
Each cell has its own dedicated TEC for closed-loop temperature regulation

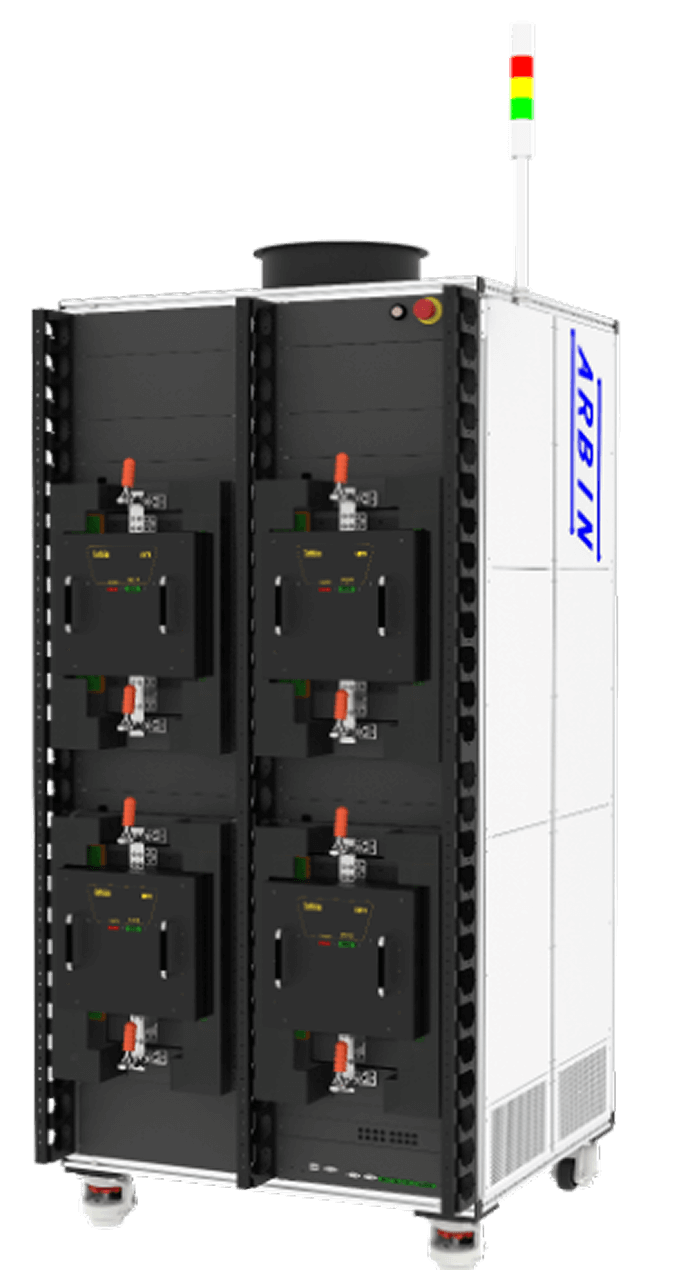

Smart Battery Trays in Isolation Rack
SBTR Illustrations
Arbin Instruments offers a Smart Battery Tray (SBTR). SBTR system uses racks or environmental chambers to house battery trays; each tray holds removable battery holders, and cells are mounted in these holders for testing.
Arbin SBTR Rack
SBTR Tray(exclude holder)
SBTR in Isolation Rack - Side View
SBTR in Isolation Rack - Front View
SBTR in Thermal Chamber - Side View
SBTR in Thermal Chamber - Storage Illustration
SBTR in Isolation Rack - Storage Illustration
SBTR Battery Trays - OTO
400-A, 2-Channel Pouch/Prismatic cell-tabs on same side Battery Tray
Max Cell Holder qty: 2
Max Cell qty: 2
Max Voltage per cell: -5V to 5V
Max Current per cell: 400 A
External Dimension: 12"W x 32.5"D x 20"H
400-A, 2-Channel Pouch/Prismatic cell-tabs on opposite side Battery Tray
Max Cell Holder qty: 2
Max Cell qty: 2
Max Voltage per cell: -5V to 5V
Max Current per cell: 400 A
External Dimension: 12"W x 32.5"D x 20"H
200-A, 4-Channel Pouch/Prismatic cell-tabs on same side Battery Tray
Max Cell Holder qty: 2
Max Cell qty: 4
Max Voltage per cell: -5V to 5V
Max Current per cell: 200 A
External Dimension: 12"W x 32.5"D x 20"H
200-A, 4-Channel Pouch/Prismatic cell-tabs on opposite side Battery Tray
Max Cell Holder qty: 2
Max Cell qty: 4
Max Voltage per cell: -5V to 5V
Max Current per cell: 200 A
External Dimension: 12"W x 32.5"D x 20"H
200-A, 4-Channel Cylindrical Cell Battery Tray
Max Cell Holder qty: 4
Max Cell qty: 4
Max Voltage per cell: -5V to 5V
Max Current per cell: 200 A
External Dimension: 12"W x 32.5"D x 20"H
100-A, 8-Channel Battery Tray
Max Cell Holder qty: 8
Max Cell qty: 8
Max Voltage per cell: -5V to 5V
Max Current per cell: 100 A
External Dimension: 12"W x 32.5"D x 20"H
50-A, 12-Channel Battery Tray
Max Cell Holder qty: 6
Max Cell qty: 12
Max Voltage per cell: -5V to 5V
Max Current per cell: 50A
External Dimension: 12"W x 32.5"D x 20"H
30-A, 16-Channel Battery Tray
Max Cell Holder qty: 8
Max Cell qty: 16
Max Voltage per cell: -5V to 5V
Max Current per cell: 30 A
External Dimension: 12"W x 32.5"D x 20"H
10-A, 32-Channel Battery Tray
Max Cell Holder qty: 8
Max Cell qty: 32
Max Voltage per cell: -5V to 5V
Max Current per cell: 10 A
External Dimension: 12"W x 32.5"D x 20"H
2-A, 64-Channel Battery Tray
Max Cell Holder qty: 8
Max Cell qty: 64
Max Voltage per cell: -5V to 5V
Max Current per cell: 2 A
External Dimension: 12"W x 32.5"D x 20"H
SBTR Battery Holder Without TEC
400-A, 1-Channel Prismatic cell-tabs on same side Battery Holder
Number of Cells: 1
Max Current: 400A
Cell Size:
L≤400mm W≤50mm H≤135mm
A≤300mm B≥40mm E≥5mm
400-A, 1-Channel Prismatic cell-tabs on opposite side Battery Holder
Number of Cells: 1
Max Current: 400A
Cell Size:
L≤280mm, H≤250mm (When the label is in the middle)
400-A, 1-Channel Pouch cell-tabs on same side Battery Holder
Number of Cells: 1
Max Current: 400A
Cell Size:
L≤400mm H≤190mm
A≤325mm B≥40mm
400-A, 1-Channel Pouch cell-tabs on opposite side Battery Holder
Number of Cells: 1
Max Current: 400A
Cell Size:
L≤400mm H≤250mm (When the label is in the middle)
200-A, 2-Channel Prismatic cell-tabs on same side Battery Holder Tray
Number of Cells: 2
Max Current: 200A
Cell Size:
L≤220mm W≤50mm H≤135mm
A≤180mm B≥40mm E≥5mm
200-A, 2-Channel Prismatic cell-tabs on opposite side Battery Holder
Number of Cells: 2
Max Current: 200A
Cell Size:
L≤350mm H≤120mm (When the label is in the middle)
200-A, 2-Channel Pouch cell-tabs on same side Battery Holder
Number of Cells: 2
Max Current: 200A
Cell Size:
L≤220mm H≤180mm
A≤180mm B≥40mm
200-A, 2-Channel Pouch cell-tabs on opposite side Battery Holder Tray
Number of Cells: 2
Max Current: 200A
Cell Size:
L≤400mm H≤120mm (When the label is in the middle)
Battery Cell Size Specification
Number of Cells: 1
Max Current: 200A
Cell Size:
ØD=46mm 80mm≤ L ≤120mm
10-A, 4-Channel Cylindrical Cell Battery Holder
Number of Cells: 4
Max Current: 10A
Cell Size:
10mm≤ ØD ≤26mm
40mm≤ L ≤80mm
100-A, 1-Channel Cylindrical Cell Battery Holder Tray
Number of Cells: 1
Max Current: 100A
Cell Size:
10mm ≤ ØD ≤ 46mm
40mm ≤ L ≤ 120mm
100-A, 1-Channel Cylindrical Cell Battery Holder
Number of Cells: 1
Max Current: 100A
Cell Size:
A≤40mm B≥8mm
L≤65mm H≤150mm
50-A, 2-Channel Cylindrical Cell Battery Holder
Number of Cells: 2
Max Current: 50A
Cell Size:
10mm ≤ ØD ≤ 46mm
40mm ≤ L ≤ 80mm
50-A, 2-Channel Pouch Cell Battery Holder
Number of Cells: 2
Max Current: 50A
Cell Size:
A≤40mm B≥8mm L≤60mm
75 ≤ H ≤ 150mm (1 cell per holder)
H ≤ 75mm (2 cell per holder)
100-A, 1-Channel Cylindrical Cell Battery Holder
Number of Cells: 1
Max Current: 100A
Cell Size:
A≤40mm B≥8mm
L≤65mm H≤150mm
2-A, 8-Channel Coin Cell Battery Holder
Number of Cells: 8
Max Current: 2A
Cell Size:
10mm ≤ ØD ≤ 30mm H ≤ 7mm
SBTR Battery Holder With TEC
Cell Fixture (1 Cell)
Number of Cells: 1
Maximum current: 200A
Battery size: 4695
Cell Fixture (1 Cell)
Number of Cells: 1
Maximum current: 200A
Battery size: 4680
Cell Fixture (2 Cells)
Number of Cells: 2
Maximum current: 50A
Battery size: 18650
Cell Fixture (2 Cells)
Number of Cells: 2
Maximum current: 50A
Battery size: 21700
SBTR Rack
Multiple Opening Environment Chamber
This is an environmental chamber which features pre-manufactured slots in the door to allow Arbin's SBTR to slide into the front, making contact with the charge/discharge channels.
Multiple Opening Isolation Rack
This is a rack solution without additional thermal control capabilities.
