Are there specific requirements for preparing the facility to set up the Arbin system?

Generally, there are several points to note:

1. Arbin machines typically have a working ambient temperature range of 0°C to 30°C. Therefore, please prepare the air-conditioning system accordingly.

2. The power grid system must be prepared to match the machine’s input power requirements. For example, some machines require single-phase power input, while others require a three-phase power supply.

3. You also need to pay attention to the input current requirements. Please make sure the power socket can provide sufficient current for either the single-phase or three-phase input of the Arbin machine.

4. The distance between the machine and the wall should also be considered:

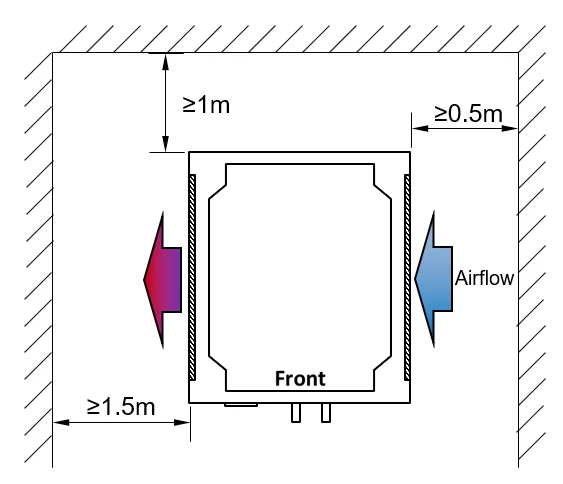

   Linear system Layout Recommendation
   (Applied for  LBT, LBTS, HPS, HS series)

   The distance from the right wall should be ≥ 0.5m，
   The distance from the left wall should be ≥1.5m，
   The distance from the back wall should be ≥1m.

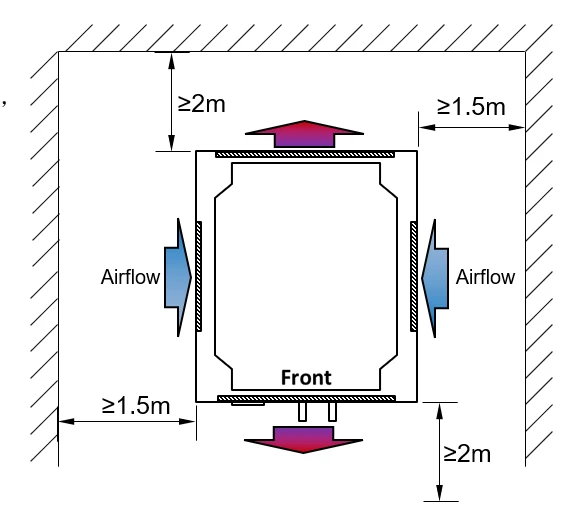

If you have more than one Arbin system, please contact your sales rep to get more information about the distance between the systems and layout recommendation.
