充电/放电电流几乎为0或远远小于设定值？

In some cases, the charge or discharge current may be significantly lower than the configured value, or even close to zero. This issue is typically caused by software configuration limits or hardware-related problems.

This article provides a structured troubleshooting guide to help identify and resolve the issue efficiently.

Symptoms

You may observe the following:

• The actual current is close to 0 A

• The current is much lower than the configured set value

• The system cannot reach the expected charge/discharge current

• Current output appears capped or unstable

Possible Causes and Solutions

1. Schedule’s clamp setting limit current output

In global tab of schedule file, locate Clamp protections area

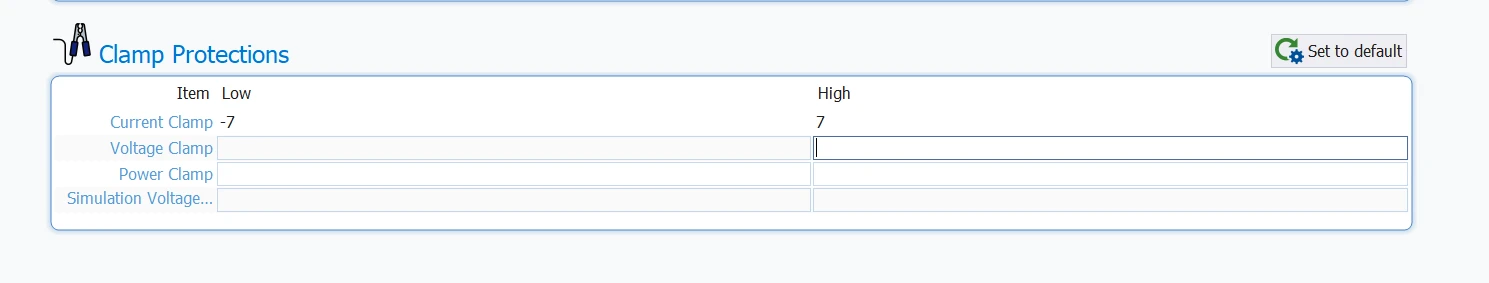

Ensure the entered values are appropriate. For example, if Current Clamp Low is -7A and Current Clamp High is 7A, setting the current to 10A or -10A in the schedule will not exceed the range (-7A, 7A).

解决方案:
Remove the clamp value or enter a higher value as needed.

2. Max Current setting is lower than the configured current

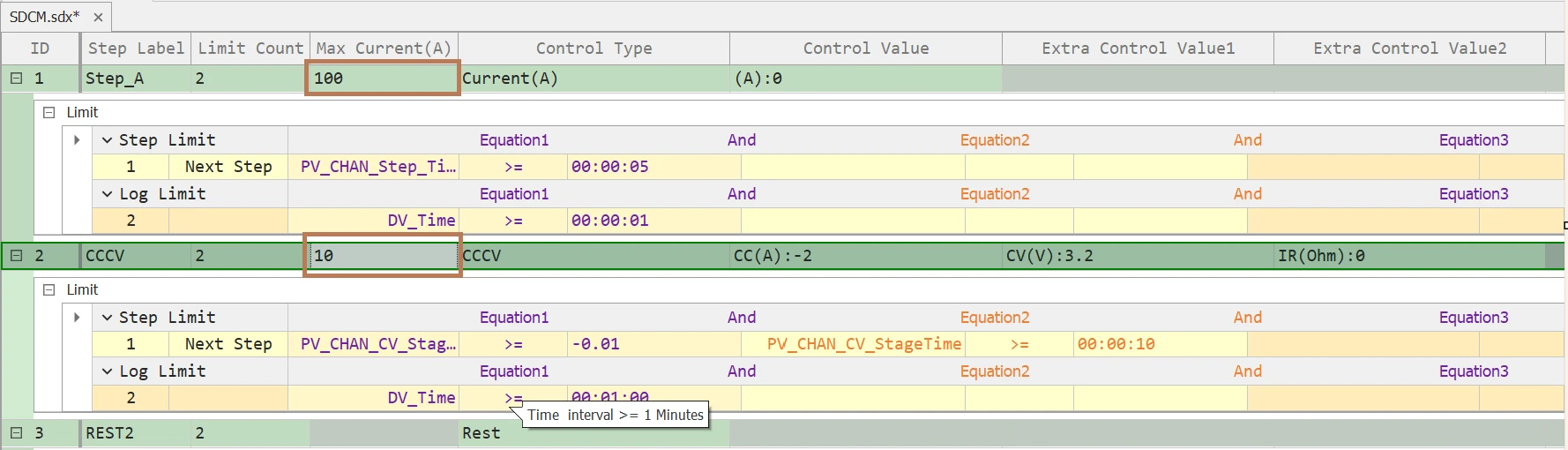

If the Max Current defined in the schedule’s step is lower than the set current, the output current cannot reach the set current.
Solution:

In schedule file, locate Step Limit tab.

• Increase the Max Current value

• Ensure it matches or exceeds the desired current level

3. Fuse on IV board is broken

4. Switching Power Supply is off or not working

If the current is nearly zero, the Switching Power Supply (SPS) may not be turned on.

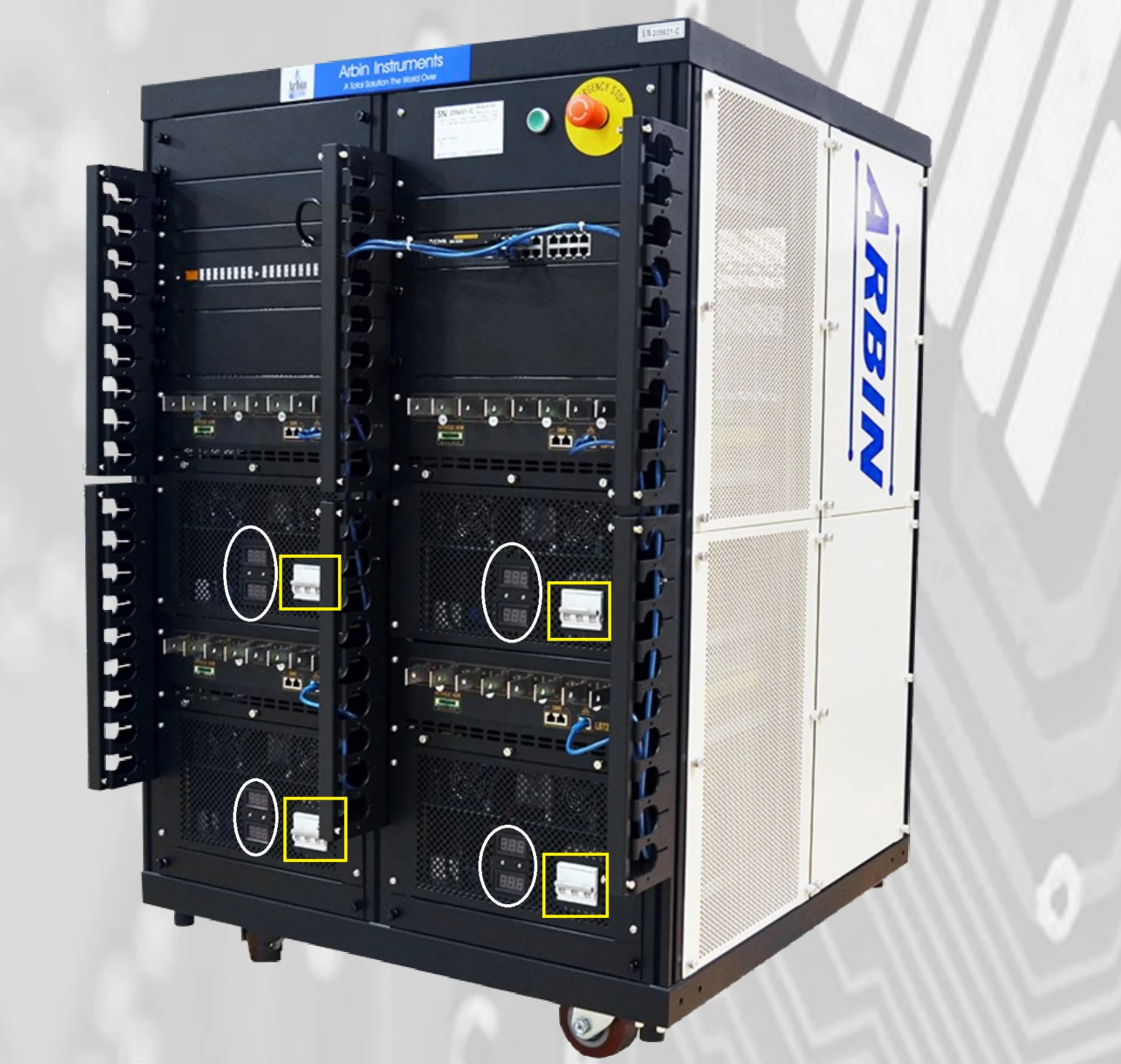

The picture below shows a typical Arbin machine with SPS, the SPS’s air breaker are the white colors in the yellow rectangles. On their left side are light indicator showing V++ and V– (circled in white).

For smaller machines, the Switching Power Supply maybe hidden inside the chassis.

Solution:

a. For visible switching power supply

• Turn on the switching power supply and ensure the light indicators are on as shown below:

• If the air breaker is on but the light is off, check the three-phase power supply at the machine’s rear.

• If the breaker is on and only one light indicator is lit, the SPS has a hardware issue. Please contact Arbin support.

b. For hidden switching power supply

• Try issuing a small current using the machine’s lowest range, e.g., I range4. If it outputs the correct current with this range but fails with others, the switching power supply is likely faulty.

  Please contact Arbin support for assistance.

5. V++ or V– is too small

The symptom is that the charge current drops when voltage is high and the discharge current drops when voltage is low (e.g., in systems like LBT21). This may indicate insufficient V++ voltage.

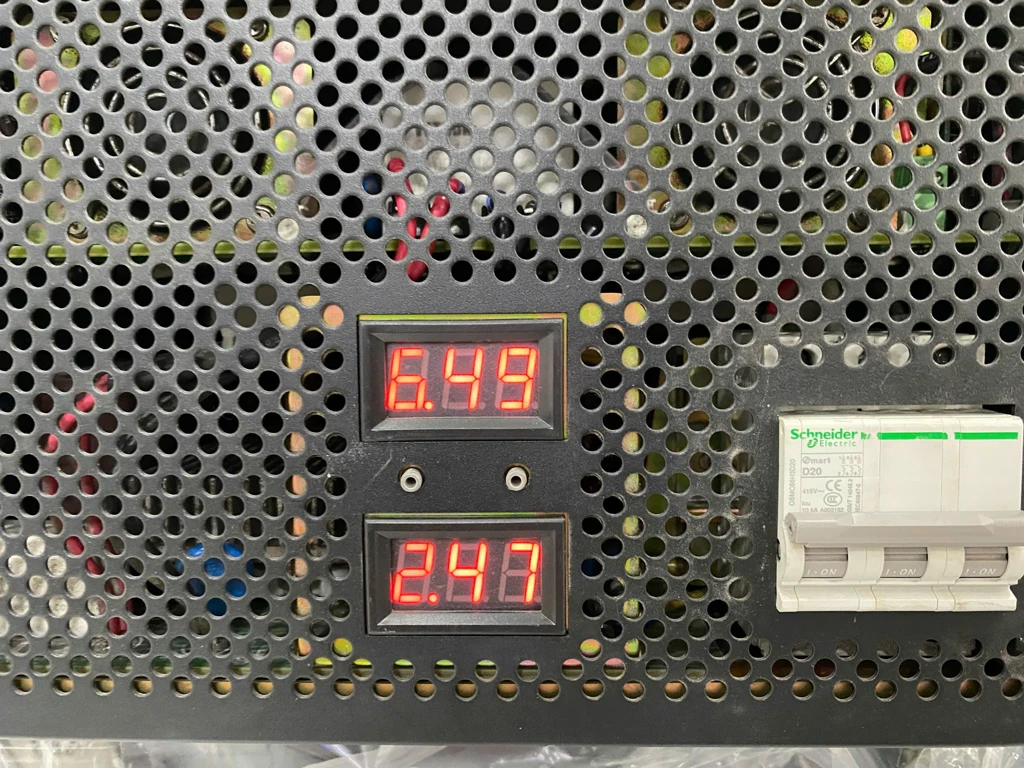

Ensure the voltage shown on the light indicator reasonably covers the voltage range in the specs. For example, here, V++ = 6.49V and V– = -2.47V, so the range [-2.47V, 6.49V] covers this machine’s 0-5V range.

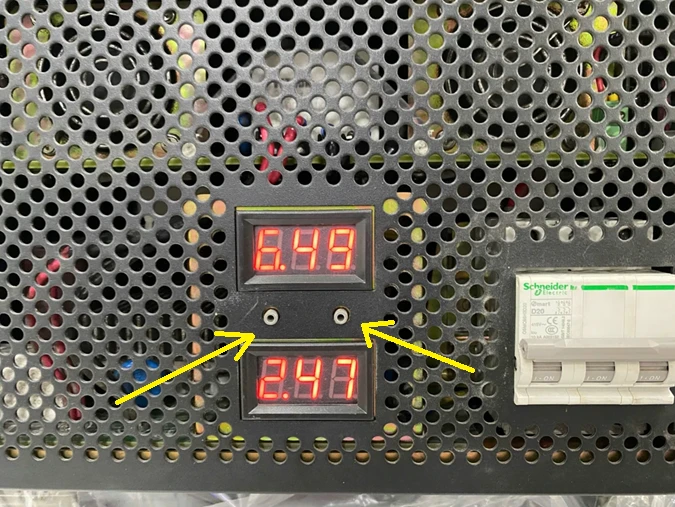

To adjust V++ or V–, use the tool to turn the round button indicated by the two yellow arrows to increase or decrease V++ and V–

7. Other reasons

If you completed the troubleshooting above but still cannot resolve the issue, contact Arbin support at https://www.arbin.com/contact-us.html
